LDAP Logon

The LDAP Logon add-on allows user’s in companies with the On-Premise license to re-use their local logon credentials when logging on to Forsta Plus. This will reduce the company’s total maintenance of user credentials for their applications. Access to the component is controlled in the Forsta Plus license file.

The add-on functions as follows:

1. An employee clicks the link to the company’s internal installation of Forsta Plus.
2. Forsta Plus displays a login page asking for the user’s UserName and Password.
3. The employee enters his/her internal “company” UserName and Password.
4. Based on the information provided, Forsta Plus uses LDAP to perform a directory lookup in the company’s Directory. A successful lookup will log the user into Forsta Plus.
5. On the first login attempt a Forsta Plus user will automatically be created.

Configuration

After the functionality has been installed and enabled, it must be configured using the System Configuration interface available for system administrators, as displayed in the figure below.

Figure 1 - The System Configuration interface

The table below describes the site-wide settings and their use:

Configname	Type	Description
LdapLogOnEnabled	Bool	If enabled, LDAP directory authentication will be used when logging on to Forsta Plus. If disabled, normal Forsta Plus authentication will be used.
LdapSyncPassword	Bool	If enabled, the Forsta Plus user will be given the same password as the LDAP directory user, and this will be kept in sync by performing a synchronization when the user logs on to Forsta Plus. If disabled, the user will be given a random, strong password when created.
LdapSyncUserSettings	Bool	If enabled, the user settings (first name, last name, email) will be kept in sync with the values found in the LDAP directory by performing a synchronization every time the user logs on to Forsta Plus. If disabled, the user settings will not be synchronized, but remain the same as when the user was created.
LdapPath	Text	Path to LDAP directory.
LdapAuthenticationType	Int	Authentication type. 1 = Anonymous 2 = Delegation 3 = Encryption 4 = FastBind 5 = None 6 = ReadonlyServer 7 = Sealing 8 = Secure 9 = SecureSocketsLayer 10 = ServerBind 11 = Signing
LdapServerType	Int	Directory server type. 1 = MS Active Directory 2 = OpenLDAP
LdapUserDomain	Text	Specifies the domain of the directory user. Not always required depending on server type.
LdapBypassUser	Text	Specifies the Forsta Plus user that can be used to bypass LDAP logon.
LdapUserIdAttribute	Text	Specifies the directory attribute that is used when searching for user in directory.
LdapUserFirstNameAttribute	Text	Specifies the directory attribute that is used to provide the first name of the Forsta Plus user that is created during LDAP logon.
LdapUserLastNameAttribute	Text	Specifies the directory attribute that is used to provide the last name of the Forsta Plus user that is created during LDAP logon.
LdapUserEmailAttribute	Text	Specifies the directory attribute that is used to provide the email address of the Forsta Plus user that is created during LDAP logon.
LdapNewUserCompany	Text	Specifies the company name of the Forsta Plus user that is created during LDAP logon. Must be a company that has already been defined in Forsta Plus.
LdapNewUserLanguage	Int	Specifies language code of the Forsta Plus user that is created during LDAP logon. Must be a valid language code.
LdapNewUserLevel	Int	Specifies “level” of the Forsta Plus user that is created during LDAP logon. Must be a valid level code. 0 = None 100 = NoAccess 105 = Express 110 = Translator 200 = Professional
LdapNewUserRole	Text	Specifies “role” of the Forsta Plus user that is created during LDAP logon. Must be a role that has already been defined in Forsta Plus, if specified.
LdapNewUserType	Int	Specifies “type” of Forsta Plus user that is created during LDAP logon. Must be a valid type code. 0 = Normal 1 = Test 2 = Training 3 = Trial 4 = ExpressConnect

New Forsta Plus User

If the module has been activated, enabled and configured correctly, authentication will be performed using the LDAP directory for every user (except for the username specified in the LdapBypassUser config setting). If the user has never logged on before, a new Forsta Plus user will be created if the directory authentication is successful. The user will be configured according to the values entered in the config settings (company, language, level etc.).

Fallback

If LdapSyncPassword is enabled, this new user will be given the same password as the directory user. This will enable to user to log on successfully in the future in the event of an LDAP failure (service unavailable etc.), or if the module is disabled. If LdapSyncPassword is disabled, the new user will be given a random (but strong) password, so it will be impossible to log on with the user if LDAP Logon isn’t operational.

User Settings

When a new Forsta Plus user is created, the user will be given the same first name, last name and email address as found in the directory attributes specified in the config settings for the directory user. If LdapSyncUserSettings is enabled, these values will be kept in sync (synchronized when user logs on) and it will not be possible for the user to change these values in Forsta Plus.

Troubleshooting

Errors related to LDAP Logon will be written to the Activity Log. It is possible to search through this log using the System Activities interface that is available for system administrators, as shown in the figure below.

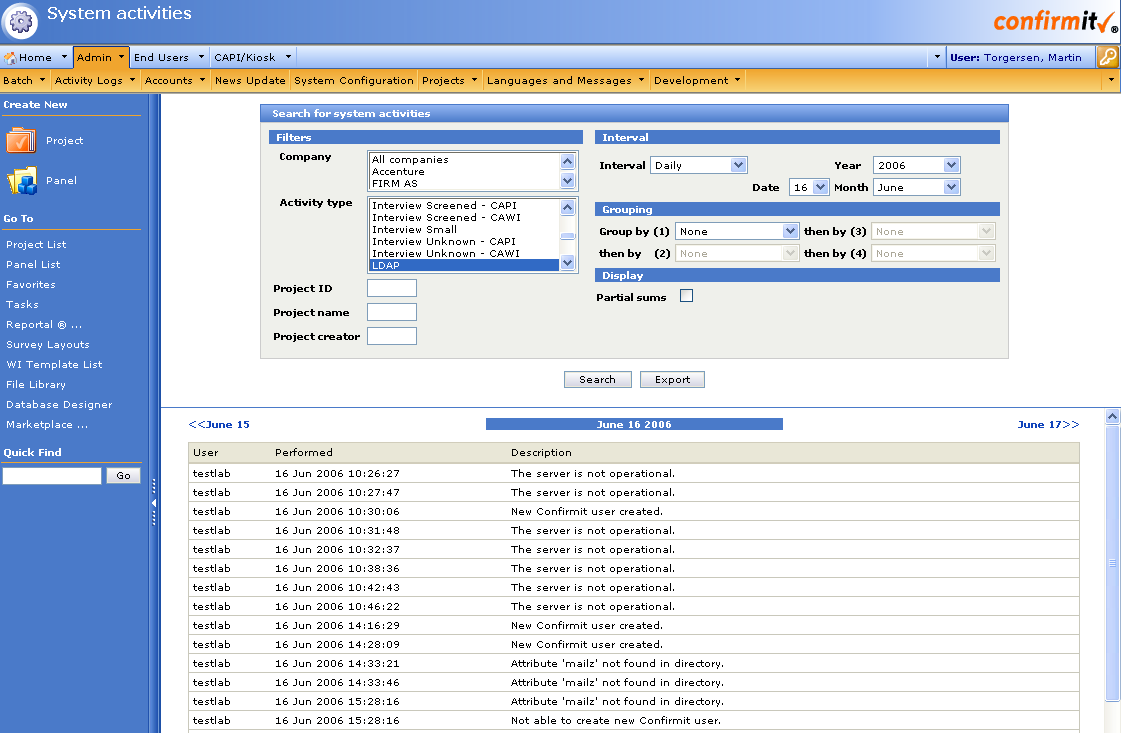

Figure 2 - Example of the System Activities page

The search results will display events that occurred during the specified interval, and can be exported to a tab delimited text file for further investigation.
